Tile Leveling Clips
Precision break-off clips for a consistent, even tile surface.
Product overview

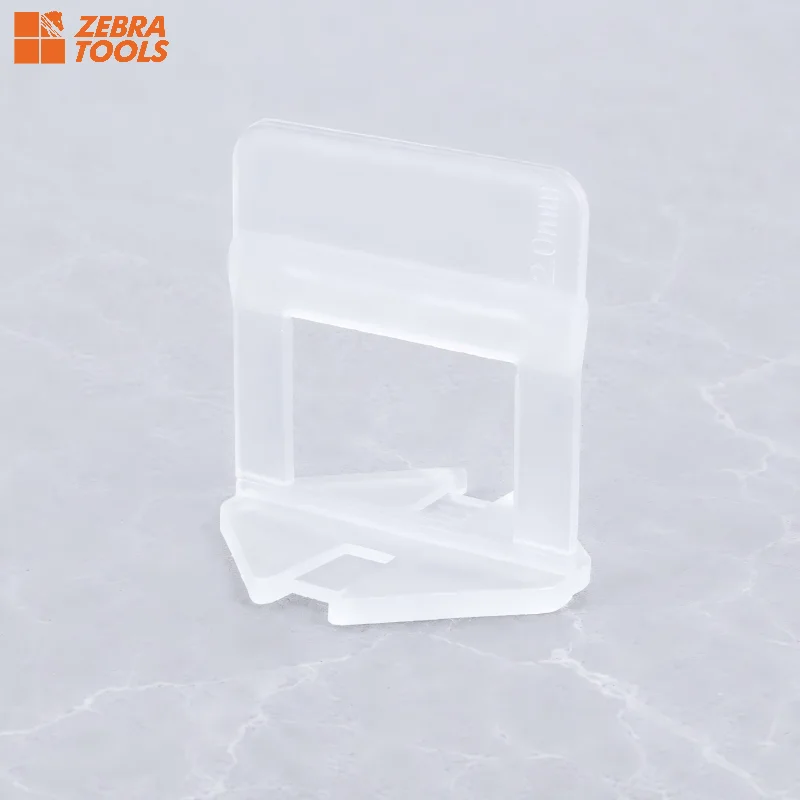

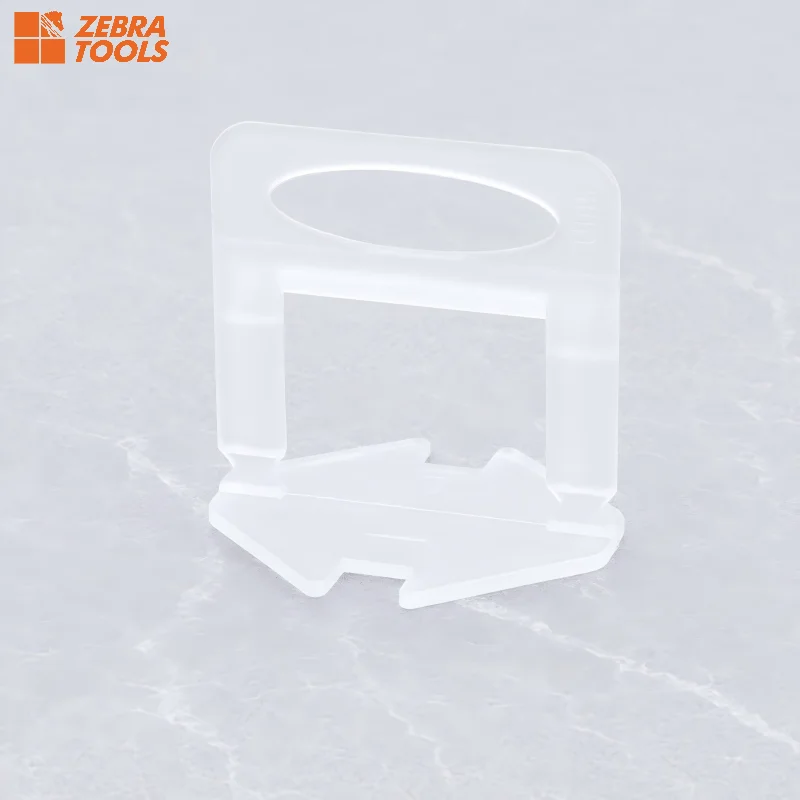

The tile leveling clip is the single-use base in a clip-and-wedge system — 10 break-off models spanning 0.5–4.5mm joints for 3–24mm tiles. Choose the base width from the specified grout joint and choose the model from the tile-body thickness; clips align adjacent edges while mortar cures but do not correct substrate flatness or tile warpage. On a regular 60×60cm floor grid, plan about 11 clips per m².
Exact availability and specifications confirmed upon inquiry.
Models & specifications
| Model | Dimensions | Tile Thickness | Spacer Options | Weight Range |
|---|---|---|---|---|
| BM-B01 | 37×25×40mm | 3–14mm | 1.0mm, 1.5mm, 2.0mm, 3.0mm | 3.4g – 3.6g |
| BM-B02 | 35.5×22.4×39.3mm | 3–14mm | 1.0mm, 1.5mm, 2.0mm, 3.0mm | 2.2g – 2.5g |
| BM-B03 | 36×25×40mm | 3–14mm | 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm | 2.4g – 2.73g |
| BM-B04 | 35×25×35mm | 3–14mm | 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.5g – 1.96g |
| BM-B05 | 37×25×40mm | 3–14mm | 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.5mm | 2.33g – 3g |
| BM-B06 | 36×22.8×49mm | 14–24mm | 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm | 2.44g – 3.04g |
| BM-B07 | 38×23.7×39.4mm | 3–14mm | 1.0mm, 1.5mm, 2.0mm, 3.0mm | 3.3g – 3.8g |
| BM-B08 | 20×20×30mm | 3–12mm | 1.0mm, 1.5mm | 1.2g |
| BM-B09 | 23.8×16×33mm | 3–14mm | 0.5mm, 0.7mm, 1.0mm, 1.5mm, 2.0mm | 1g – 1.2g |
| BM-B10 | 21×21×43.4mm | 3–10mm | 0.8mm, 1.0mm, 1.5mm, 2.0mm | 0.8g – 1g |
Specifications are from the supplier catalog and should be confirmed before ordering.
