Leveling systems

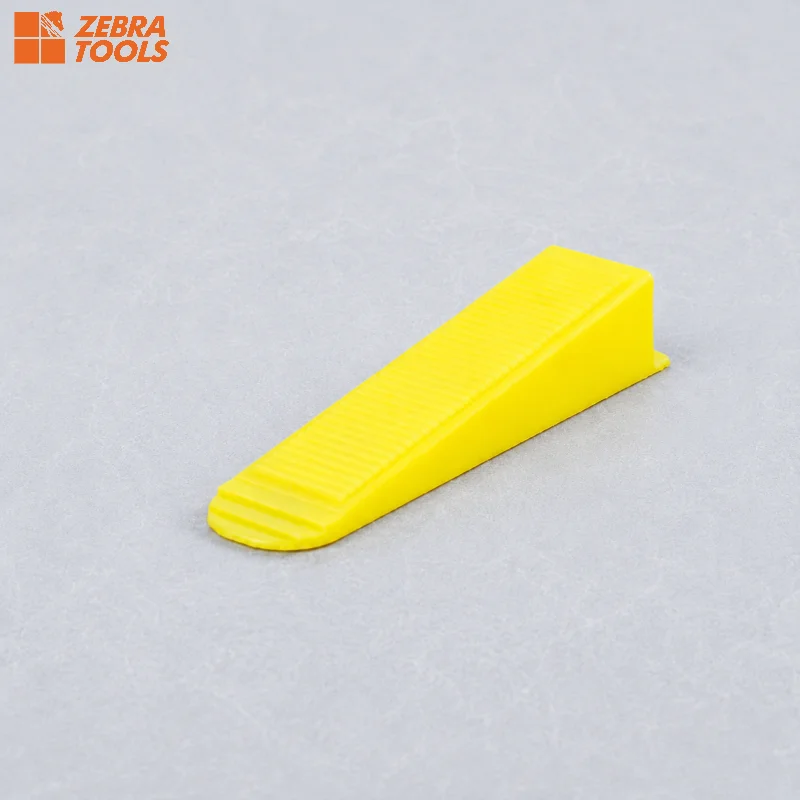

Tile Leveling Wedges
Reusable wedges engineered for controlled leveling pressure.
Product overview

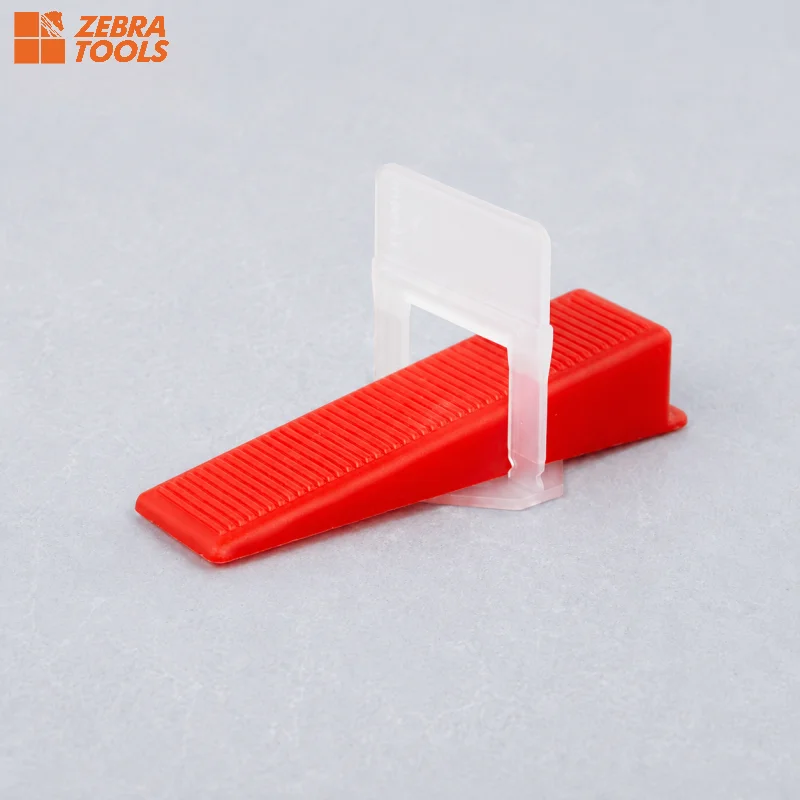

These tile leveling wedges span 11 catalog models. A01–A05 are standard profiles; A06 pairs with BM-B07/BM-B09 clips; A07 pairs with BM-B08; and A08–A11 cover compact 1–5mm through 1–10mm size ranges. Standard packing is 100 pieces per bag.
Exact availability and specifications confirmed upon inquiry.
Technical details
11 catalog modelsModels & specifications
| Model | Dimensions | Catalog Size Range | Confirmed Pairing | Unit Weight |
|---|---|---|---|---|
| BM-A01 | 92×23×16.5mm | 3–14mm | Sample test | 6.2g |
| BM-A02 | 87×21×16mm | 3–14mm | Sample test | 5.1g |
| BM-A03 | 92×23×16.5mm | 3–14mm | Sample test | 5.6g |
| BM-A04 | 92×23×16.5mm | 3–14mm | Sample test | 4.7g |
| BM-A05 | 83×20×16.9mm | 3–14mm | Sample test | 3.9g |
| BM-A06 | 70×15×14mm | - | BM-B07 / BM-B09 | 4.7g |
| BM-A07 | 68×14×16.5mm | - | BM-B08 | 3.0g |
| BM-A08 | 28.5×6.4×5mm | 1–5mm | Sample test | 0.4g |
| BM-A09 | 29×8×6mm | 1–6mm | Sample test | 0.5g |
| BM-A10 | 35×8.2×8mm | 1–8mm | Sample test | 1.03g |
| BM-A11 | 57×9.7×9.7mm | 1–10mm | Sample test | 1.5g |
Specifications are from the supplier catalog and should be confirmed before ordering.
